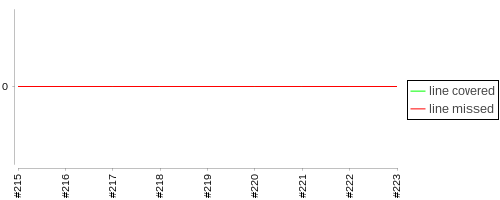

Coverage
1: package de.fhdw.wtf.persistence.facade;
2:
3: import java.util.Collection;
4: import java.util.List;
5:
6: import de.fhdw.wtf.persistence.exception.ClassFacadeUninitializedException;
7: import de.fhdw.wtf.persistence.exception.DuplicateUserTypeException;
8: import de.fhdw.wtf.persistence.exception.PersistenceException;
9: import de.fhdw.wtf.persistence.meta.Association;
10: import de.fhdw.wtf.persistence.meta.MapAssociation;
11: import de.fhdw.wtf.persistence.meta.Type;
12: import de.fhdw.wtf.persistence.meta.UnidirectionalAssociation;
13: import de.fhdw.wtf.persistence.meta.UserType;
14:
15: /**
16: * A facade to access objects in the database which represent types and associations.
17: *
18: */
19: public interface ClassFacade {
20:
21: /**
22: * Constructor for a new User Type.
23: *
24: * @param name
25: * The name of the {@link de.fhdw.wtf.persistence.meta.UserType User Type}.
26: * @param abs
27: * A boolean flag indicating whether this {@link de.fhdw.wtf.persistence.meta.UserType User Type} is
28: * abstract or not
29: * @param transaction
30: * A boolean flag indicating whether this {@link de.fhdw.wtf.persistence.meta.UserType User Type} is also
31: * an Transaction or not.
32: * @return Provides a new {@link de.fhdw.wtf.persistence.meta.UserType} with the given attributes and the next
33: * possible id.
34: * @throws PersistenceException
35: * A persistence Exception is thrown if any Error contacting the database occurs.
36: * @throws DuplicateUserTypeException
37: * can be thrown if the attempt is made to create an {@link de.fhdw.wtf.persistence.meta.UserType} with
38: * an already existing name.
39: */
40: UserType createUserType(String name, boolean abs, boolean transaction) throws PersistenceException,
41: DuplicateUserTypeException;
42:
43: /**
44: * Constructor for a new {@link de.fhdw.wtf.persistence.meta.UnidirectionalAssociation}.
45: *
46: * @param name
47: * The name of the new {@link de.fhdw.wtf.persistence.meta.UnidirectionalAssociation}.
48: * @param essential
49: * A boolean flag indicating whether there is an existing object necessary.
50: * @param unique
51: * A boolean flag indicating whether the association is set-valued.
52: * @param owner
53: * The owning side of the {@link de.fhdw.wtf.persistence.meta.UnidirectionalAssociation}
54: * @param target
55: * The targeting side of the {@link de.fhdw.wtf.persistence.meta.UnidirectionalAssociation}.
56: * @return Provides a new {@link de.fhdw.wtf.persistence.meta.UnidirectionalAssociation} with the given attributes
57: * and the next possible ID.
58: * @throws PersistenceException
59: * A {@link de.fhdw.wtf.persistence.exception.PersistenceException persistence exception} is thrown if
60: * any error contacting the database occurs.
61: */
62: UnidirectionalAssociation createUnidirectionalAssociation(String name,
63: boolean essential,
64: boolean unique,
65: UserType owner,
66: Type target) throws PersistenceException;
67:
68: /**
69: * Constructor for a new MapAssociation.
70: *
71: * @param name
72: * The name of the new MapAssociation.
73: * @param essential
74: * A boolean flag indicating whether there is an existing object necessary.
75: * @param owner
76: * The owner side of the MapAssociation.
77: * @param target
78: * The targeting side of the MapAssociation.
79: * @param keyType
80: * The map-key type of the MapAssociation, when the MapAssociation is a map.
81: * @return Provides a new MapAssociation with the given attributes and the next possible ID.
82: * @throws PersistenceException
83: * A persistence Exception is thrown if any Error contacting the database occurs.
84: */
85: MapAssociation createMapAssociation(String name, boolean essential, UserType owner, Type target, Type keyType)
86: throws PersistenceException;
87:
88: /**
89: * Creates a specialization-relationship between two user types.
90: *
91: * @param ancestor
92: * The Ancestor which means the super type in the specialization
93: * @param descendant
94: * The descendant which means the sub type in the specialization
95: * @throws PersistenceException
96: * A persistence Exception is thrown if any Error contacting the database occurs.
97: */
98: void createSpecializationBetween(UserType ancestor, Type descendant) throws PersistenceException;
99:
100: /**
101: * Checks if one Type is Superior to another.
102: *
103: * @param ancestor
104: * The given super type.
105: * @param descendant
106: * The given sub type.
107: * @return Provides true if the ancestor is a supertype to descendant.
108: * @throws PersistenceException
109: * A persistence Exception is thrown if any Error contacting the database occurs.
110: */
111: boolean isSuperClassTo(Type ancestor, Type descendant) throws PersistenceException;
112:
113: /**
114: * When creating specializations, they will be stored in a normalized manner inside the database, which means that
115: * the Facade can only determine if direct specializations exist. Reflexive and transitive Specializations could not
116: * be detected. This Method creates the reflexive, transitive closure.
117: *
118: * @throws PersistenceException
119: * A persistence Exception is thrown if any Error contacting the database occurs.
120: */
121: void finalizeSpecialization() throws PersistenceException;
122:
123: /**
124: * Attention !!! This Method deletes every Type, UnidirectionalAssociation an specialization in the database. This
125: * means it should be used very carefully.
126: *
127: * @throws PersistenceException
128: * A persistence Exception is thrown if any Error contacting the database occurs.
129: */
130: void clear() throws PersistenceException;
131:
132: /**
133: * Renaming the given Type discarding the old name.
134: *
135: * @param typeId
136: * the id of the Type which should renamed
137: * @param newName
138: * the new name of the type
139: * @throws PersistenceException
140: * A persistence Exception is thrown if any Error contacting the database occurs.
141: */
142: void renameType(Long typeId, String newName) throws PersistenceException;
143:
144: /**
145: * Renaming the given Association discarding the old name.
146: *
147: * @param assoId
148: * the id of the Association which should renamed
149: * @param newName
150: * the new name of the association
151: * @throws PersistenceException
152: * A persistence Exception is thrown if any Error contacting the database occurs.
153: */
154: void renameAssociation(Long assoId, String newName) throws PersistenceException;
155:
156: /**
157: * Removes this association permanently. Attention: This function must only be called on associations that have no
158: * links!
159: *
160: * @param associationId
161: * to be removed
162: * @throws PersistenceException
163: * A persistence Exception is thrown if any Error contacting the database occurs.
164: */
165: void deleteAssociation(Long associationId) throws PersistenceException;
166:
167: /**
168: * Removes this user type and corresponding specializations permanently. Attention: This function must only be
169: * called on types that have no direct objects!
170: *
171: * @param typeId
172: * to be removed
173: * @throws PersistenceException
174: * A persistence Exception is thrown if any Error contacting the database occurs.
175: */
176: void deleteUserType(Long typeId) throws PersistenceException;
177:
178: /**
179: * Updates the instance-of relation of all links of 'association' to a matching new association in
180: * 'newAssociations'.
181: *
182: * @param associationId
183: * to be removed
184: * @param newAssociationIds
185: * new associations that links might have as new 'instance-of'
186: * @throws PersistenceException
187: * A persistence Exception is thrown if any Error contacting the database occurs.
188: */
189: void updateLinksToNewAssociation(Long associationId, Collection<Long> newAssociationIds)
190: throws PersistenceException;
191:
192: /**
193: * Updates all existing links and adds objects and links to perform the move from the old associations to the new
194: * associations, that have moved to the new type.
195: *
196: * @param oldAssoIds
197: * @param newAsso
198: * @param newType
199: * @param newAssoIds
200: * @throws PersistenceException
201: */
202: void moveLinksAndCreateObjects(List<Long> oldAssoIds, Association newAsso, UserType newType, List<Long> newAssoIds)
203: throws PersistenceException;
204:
205: /**
206: *
207: * This Method creates the Base Types in the Database and makes it possible to fill the model layer with content.
208: * This Method has to be called if there are no Model Items present in the Database and you want to create a new
209: * pool of data.
210: *
211: * @throws PersistenceException
212: * A persistence Exception is thrown if any Error contacting the database occurs.
213: */
214: void initialize() throws PersistenceException;
215:
216: /**
217: * This method initializes the classfacade when there is already a model present in the database and the persistence
218: * facade has to be set up for Runtime. It reads the Type Information from the Database and store it into the
219: * TypeManager.
220: *
221: * @throws PersistenceException
222: * A persistence exception is thrown if there are any errors contacting the database.
223: */
224: void initializeForRuntime() throws PersistenceException;
225:
226: /**
227: * A Method to determine if the classfacade has been initialized with at least Base type Informations. It is
228: * necessary that this methods provides true before executing other Database operations.
229: *
230: * @return Provides true if initialize or initializeWithExistingData had been invoked.
231: */
232: boolean hasBeenInitialized();
233:
234: /**
235: * Provides the Type Manager, which represents a Dictionary for all created Classes and Associations, so it can be
236: * used to lookup Classes. This Method could only be used if initialize or initializeWithExistingData are invoked.
237: *
238: * @return The Type Manager, which stores Information about all Types and Associatons
239: * @throws ClassFacadeUninitializedException
240: * this exception were thrown when the classfacase isn't initialized
241: */
242: TypeManager getTypeManager() throws ClassFacadeUninitializedException;
243:
244: }
